What is Fire Protection and HSSD System?

Fire protection systems are crucial for safeguarding buildings, occupants, and valuable assets. One of the most common fire protection systems is the smoke detector and sprinkler combination. In the event of a fire, the smoke detector senses smoke and triggers the sprinkler system to activate, helping to contain and extinguish the fire. However, this method may not be sufficient for certain environments, such as data centers, where even a minor fire can have catastrophic consequences.

That’s where High Sensitivity Smoke Detection system (HSSD) comes in. HSSD system is the most sensitive form of smoke detection available, designed to provide very early indication of an emerging fire condition. This pre-emptive warning allows for corrective action to be taken before the fire gets out of control.

For any data center or critical infrastructure facility, fire protection and high sensitivity smoke detection (HSSD) systems are critical components. These systems are designed to detect potential fire hazards early and provide the necessary warning to prevent a fire from starting or spreading.

What is high sensitivity smoke detection?

High sensitivity smoke detection is an advanced fire safety technology designed to identify the earliest signs of smoke, even at extremely low concentrations. Unlike traditional smoke detectors, high sensitivity smoke detection systems use sophisticated sensors and air sampling techniques to detect potential fire hazards before visible smoke or flames appear. This makes them ideal for environments where early warning is critical, such as data centers, clean rooms, and museums, helping to prevent damage and ensure occupant safety.

How does a high sensitivity smoke detection system (HSSD) work?

A high sensitivity smoke detection (HSSD) system, also known as an Aspirating Smoke Detection (ASD) system is an advanced fire detection solution designed to identify the earliest signs of a fire, even before visible smoke is present.

The system operates through a network of fine sampling pipes, typically installed near the ceiling, each containing precisely drilled holes. An integrated fan unit, called an aspirator, continuously draws air from the protected area into the pipe network. This air sample is then delivered to a central, highly sensitive detection unit.

Once inside the unit, the air passes through filters that remove dust and airborne contaminants. The cleaned air is then analyzed in a detection chamber, often using laser-based light scattering technology to identify even minute smoke particles. This allows the system to detect smoke at extremely low concentrations, far earlier than conventional detectors.

If smoke is detected, the system triggers an early warning alarm, providing critical time to investigate or respond before the situation escalates. HSSD/ASD systems are especially valuable in environments where early detection is crucial, such as data centers, clean rooms, museums, and mission-critical facilities.

Importance of High Sensitivity Smoke Detection Systems in Data Centers

A high sensitivity smoke detection data center and system go hand in hand when it comes to ensuring early fire detection and minimizing risk. Data centers house critical IT infrastructure that can be severely damaged by smoke or fire, even in small amounts. High sensitivity smoke detection systems are specifically designed to detect the faintest traces of smoke, providing an early alert before a fire can escalate. This rapid response capability is essential for protecting sensitive equipment, preventing data loss, and maintaining uninterrupted operations.

High Sensitivity Smoke Detection (HSSD) for data center and server room
High Sensitivity Smoke Detection (HSSD) Fire Protection System for data center and server room

How can we help?

At Newtech, we provide comprehensive HSSD solutions as part of our turnkey solutions for data centers infrastructure and critical environments. Our team of experts can assess your facility’s unique needs, design a custom HSSD system, source and procure the necessary equipment, install and test the system, and provide ongoing maintenance to ensure its continued reliability. With our HSSD system in place, you can have peace of mind knowing that your critical infrastructure is protected from the devastating effects of a fire.

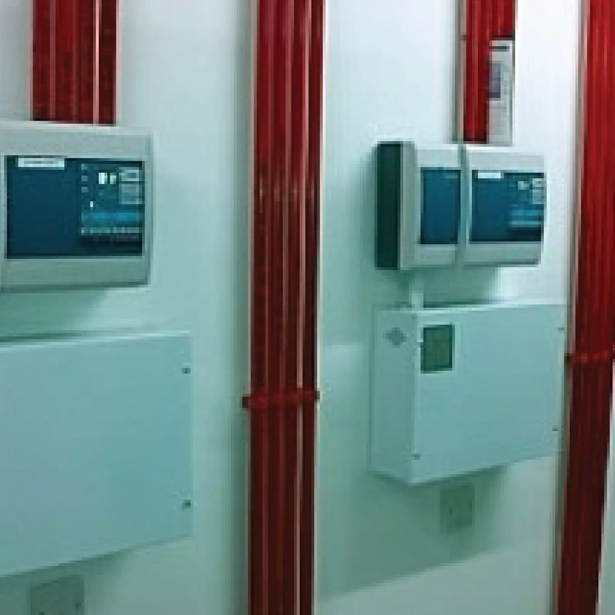

Smoke detector from HSSD system for Fire Protection to Data Center and Server Room

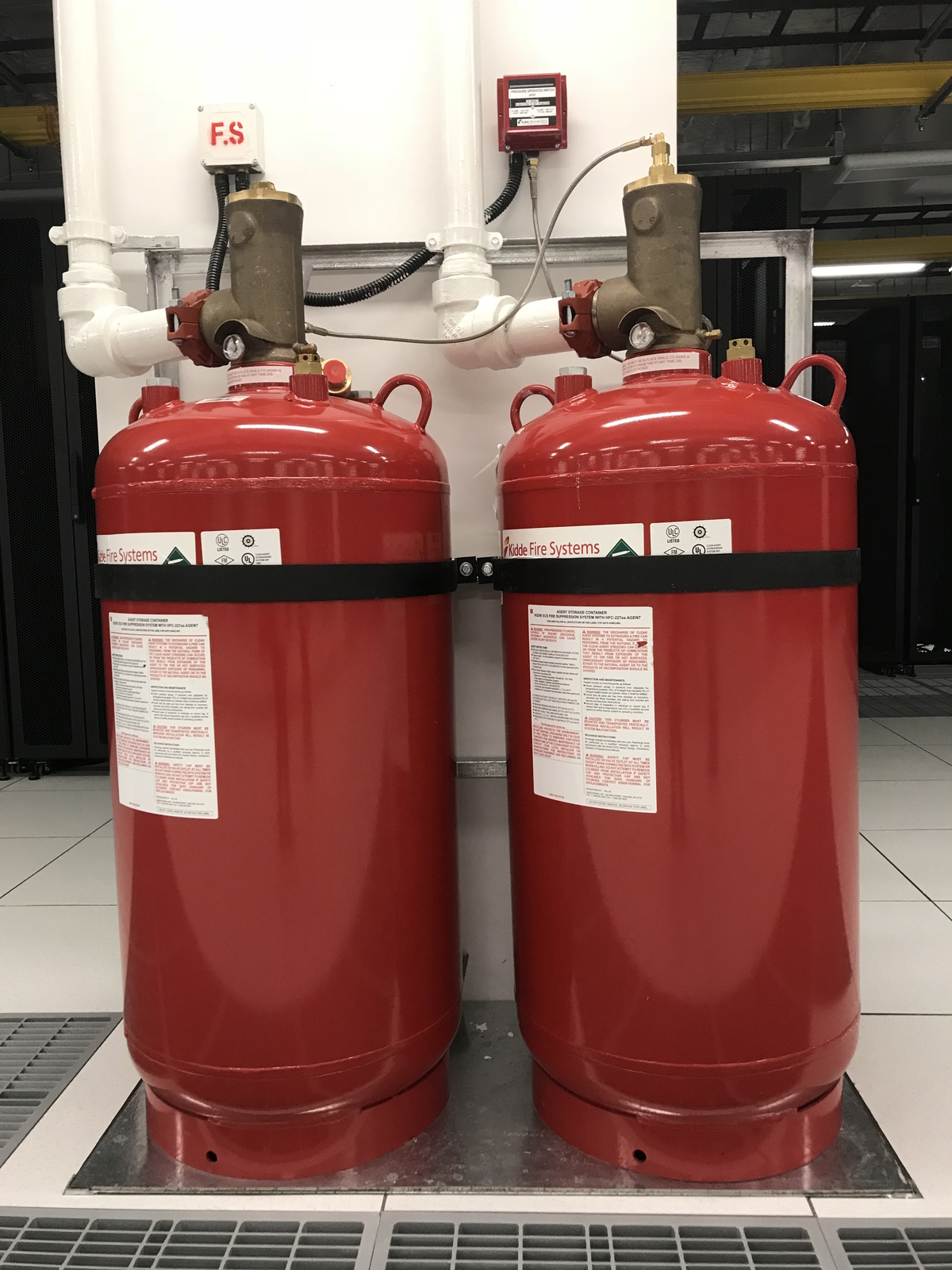

Fire protection system infrastructure in Data Center and Server Room

Fire protection system for critical environments

Data centers are critical infrastructure facilities that require reliable fire protection systems to prevent downtime and minimize the risk of equipment, data, and personnel damage. At Newtech, we specialize in designing and installing high sensitivity smoke detection system that are specifically tailored to the needs of data centers and server rooms.

In our previous projects, fire protection systems for data centers, server rooms and critical environments normally include FM200 gas suppression system, pre-action sprinkler system, wet sprinkler system, early-stage smoke detection system, and high sensitivity smoke detectors.

FM200 gas suppression system

FM200 is a non-flammable gas that is safe for people to breathe in and doesn’t damage electronic products. It’s ideal for use in colocation data centers because it can be used in an enclosed space. FM200 suppresses fire by removing heat or free radicals, disrupting the fire triangle’s chemical reaction to extinguish the fire. To enhance early fire detection in such sensitive environments, high sensitivity smoke detectors are often installed alongside FM200 systems to ensure rapid response to even the slightest traces of smoke.

FM200 is a clean agent that doesn’t leave any residue behind and is safe for equipment, electronics, and machinery.  When paired with high sensitivity smoke detectors, the system provides a highly reliable fire suppression solution that minimizes damage and downtime.

Compared to other cleaning agents, FM200 is a cost-effective option, particularly when combined with high sensitivity smoke detectors for comprehensive fire protection in mission-critical spaces.

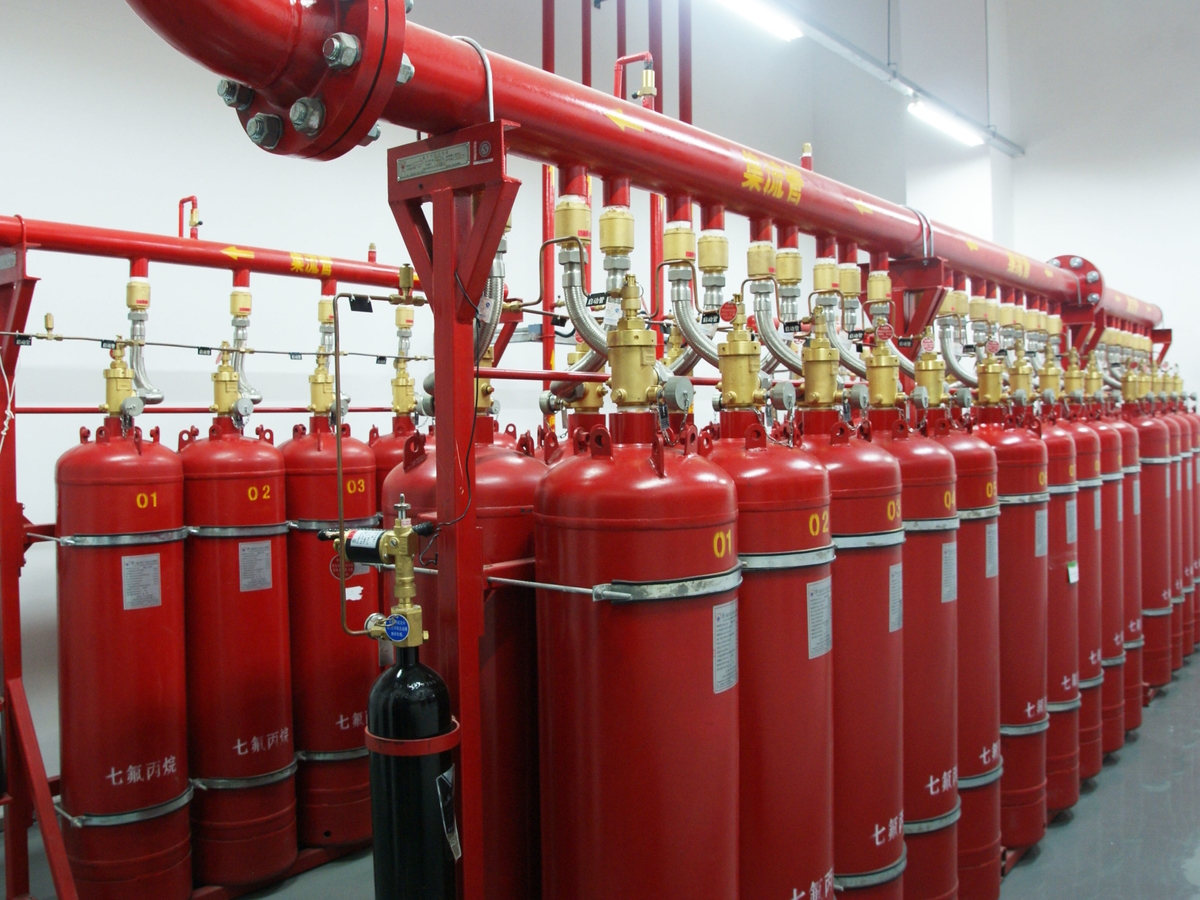

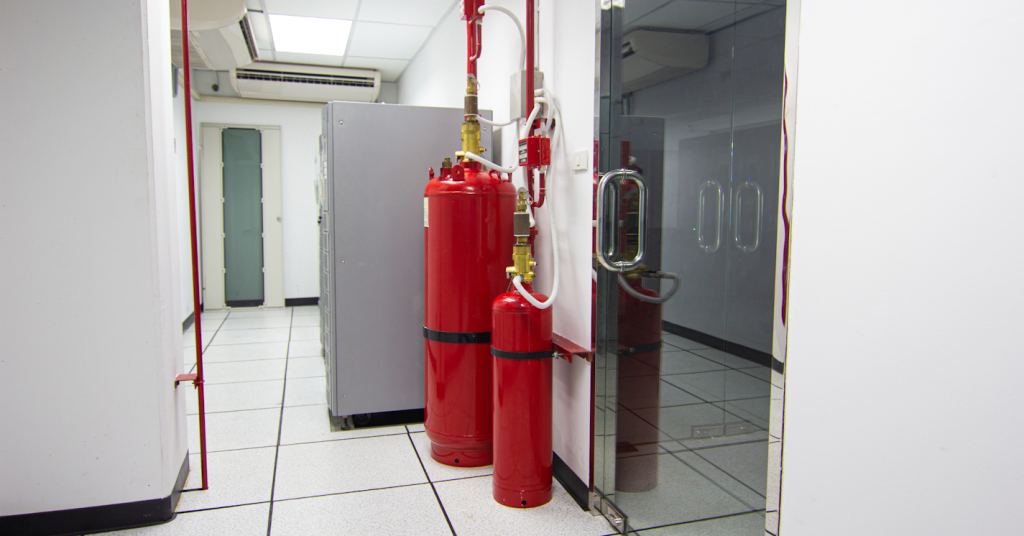

FM200 gas suppression system

Pre-action sprinkler system

In addition to FM200, we also offer pre-action sprinkler systems and wet sprinkler systems. Pre-action sprinkler systems are ideal for water-sensitive environments such as data centers & server rooms, where accidental discharges due to false alarms could cause massive damage to delicate equipment. The pre-action sprinkler system is designed to prevent accidental discharges by requiring two steps to activate. First, a detection system must confirm the presence of a fire, and then the sprinkler system can be activated to extinguish the fire.

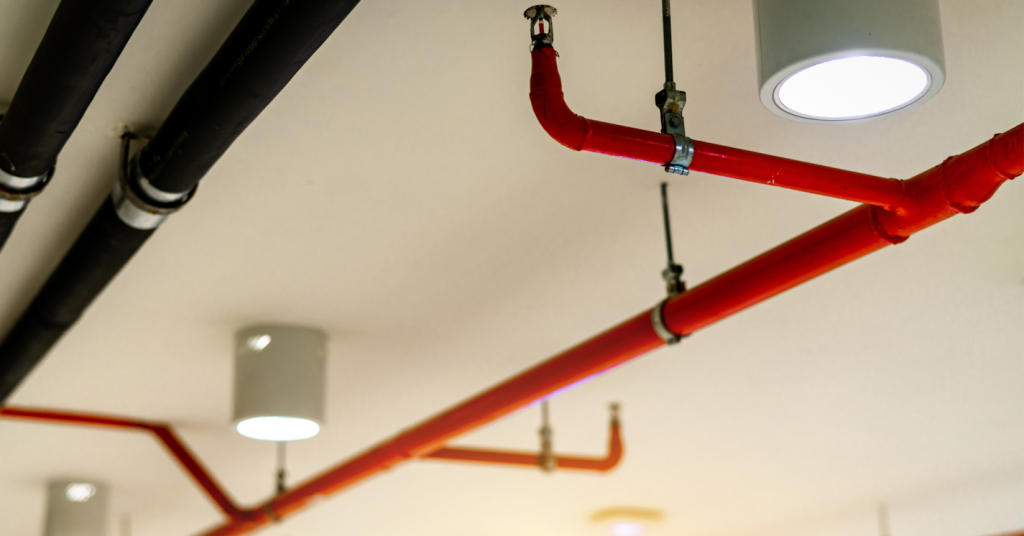

Pre-action sprinkler system

Wet sprinkler system

Wet sprinkler systems are the most common type of fire protection system and are designed to extinguish fires by spraying water from sprinkler heads. These systems have water constantly in the pipes and provide the fastest reaction time because there’s always water throughout the sprinkler piping system. However, wet sprinkler systems are best suited for areas that maintain steady temperatures above freezing level and may not be suitable for water-sensitive environments such as data centers. In such cases, a high sensitivity smoke detection system offers a more appropriate solution by providing early fire detection without the risk of water damage, making it ideal for protecting critical equipment and sensitive electronics.

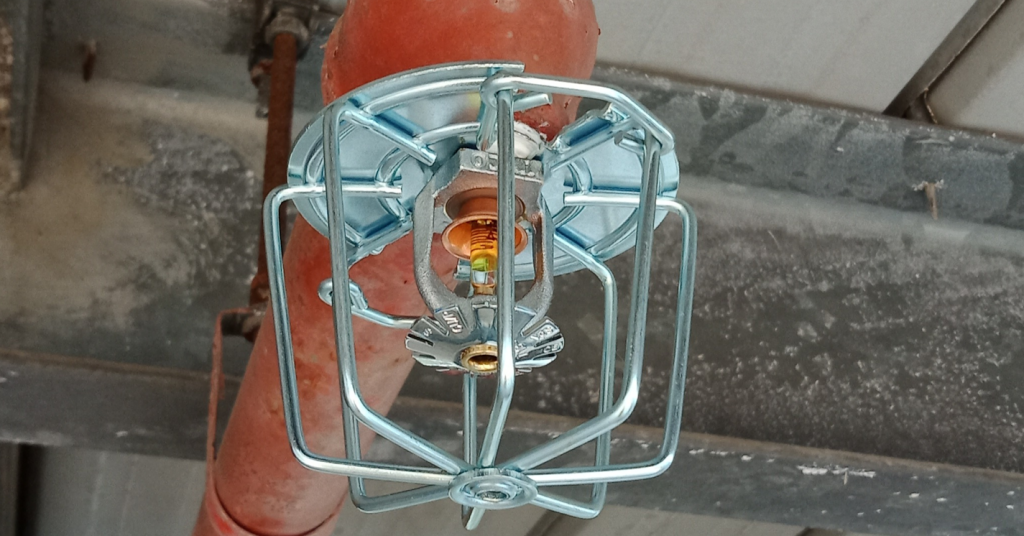

Wet sprinkler system

Early-stage smoke detection system

Early-stage smoke detection systems are critical for preventing fires in data centers, server rooms and other critical environments. These systems use advanced technology to detect even the smallest level of smoke before a fire has a chance to start. Our early-stage smoke detection system is designed to monitor all stages of a fire and provide the earliest possible warning of an imminent fire hazard. The integration of a high sensitivity smoke detection system and data center operations ensures maximum protection by identifying fire threats at their earliest stage, reducing the risk of equipment damage, data loss, and downtime in mission-critical environments.

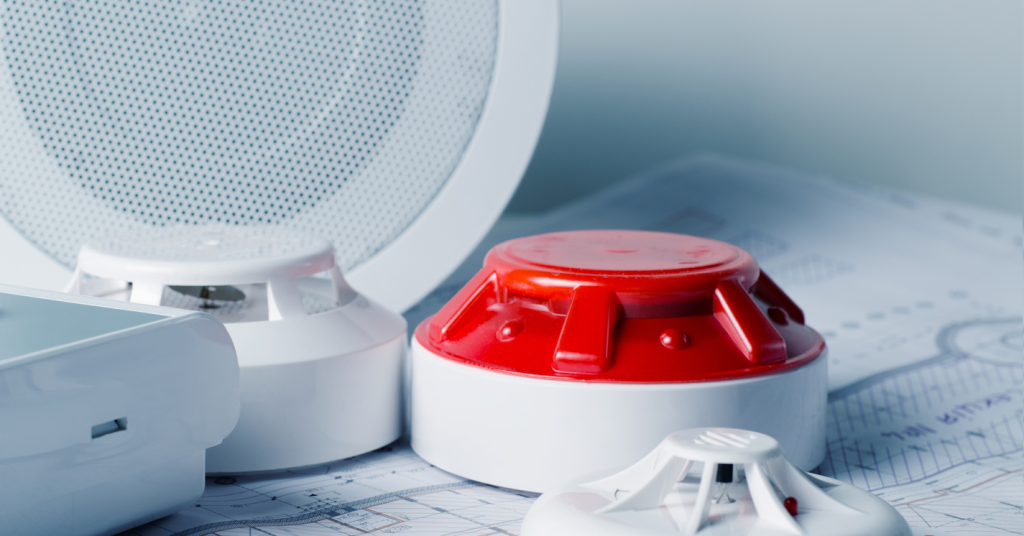

Early-stage smoke detection system

Frequently Asked Question

1. What is fire protection & HSSD System?

High sensitivity smoke and fire protection systems are crucial for safeguarding buildings, occupants, and valuable assets. One of the most common fire protection systems is the smoke detector and sprinkler combination.

2. What are the primary advantages of using high sensitivity smoke detectors over standard detectors, especially in environments with high airflow or critical assets?

High sensitivity smoke detectors (HSSD) system provide a crucial advantage over standard detectors by offering significantly earlier fire detection, often identifying microscopic smoke particles before a fire becomes visible. This capability is especially vital in environments with high airflow, such as data centers, where smoke can be diluted, or for protecting critical assets where any delay in detection can lead to substantial loss.

3. Why is data center fire protection important?

Data centers store critical infrastructure and data that can be lost in the event of a fire. Effective fire suppression systems, such as those for the entire building, individual rooms, and racks, are necessary to contain fires and prevent data loss. Without proper fire protection, a fire could result in expensive downtime, damage, and replacements of hardware and infrastructure.

A high sensitivity smoke detection system can detect smoke at the earliest possible stage, allowing for local corrective measures to be taken, such as powering down equipment or using portable fire extinguishers. HSSD systems can also be integrated into the main fire protection system, with subsequent levels of alarm set for suppressant release or evacuation.

4. Which fire protection system is suitable for small server rooms?

FM-200 fire suppression systems are ideal for small server rooms. They use a safe, clean gas to extinguish fires quickly without harming electronics or people. Unlike water sprinklers, FM-200 leaves no residue and avoids water damage risks. This makes it a cost-effective solution for protecting your critical server equipment. When combined with a FM-200 system a high sensitivity smoke detection system in a data center offer enhanced fire protection by ensuring fires are detected and suppressed in their earliest stages, minimizing downtime and safeguarding valuable IT infrastructure.
